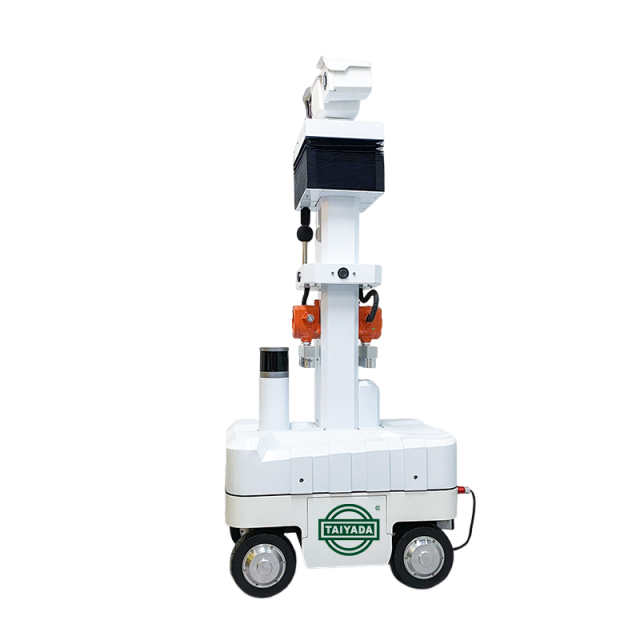

This industrial lifting robot is equipped with a mapping link to support real-time image, control and warning data transmission. The lens elevation lever makes the field of view wider, and the panoramic gimbal camera provides high resolution and pixels and supports infrared fill light. The gimbal camera has a bispectral function and supports optical zoom and temperature measurement with high accuracy. The robot also has the function of maintaining camera stability and rotating camera, and the infrared camera supports temperature measurement and other functions. The recognition camera realizes the function of personnel recognition with an accuracy of up to 90%.3D obstacle avoidance function is realized by LIDAR and ultrasonic sensors. The voiceprint acquisition system can determine the working status of the equipment, and the toxic gas detection function ensures environmental safety.

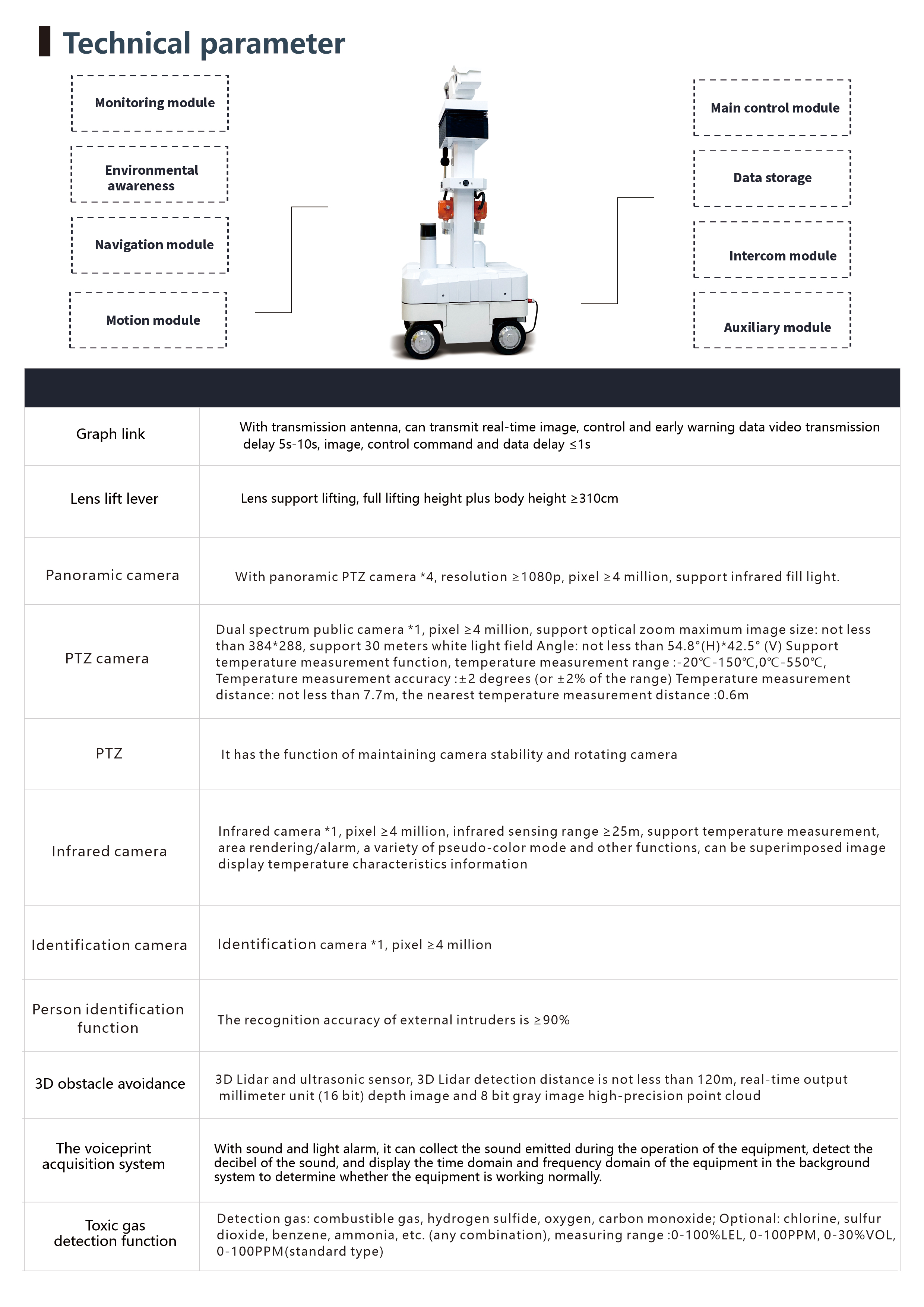

Main function points:
- Image transmission and processing capability: the robot is equipped with a transmission antenna capable of transmitting images, control commands and warning data in real time. The video transmission delay is between 5s-10s, while the delay of images, control instructions and data does not exceed 1 second. In addition, it is equipped with a panoramic gimbal camera (resolution ≥ 1080p, pixel ≥ 4 million), which supports infrared fill light, and a bispectral gimbal camera (pixel ≥ 4 million, supporting optical zoom).
- Environmental monitoring and safety protection: the robot is equipped with 3D LIDAR and ultrasonic sensors for 3D obstacle avoidance, and the LIDAR detection distance is not less than 120 m. It is also equipped with poisonous gas detection function, which can detect combustible gas, hydrogen sulfide, oxygen, carbon monoxide, etc., and optionally detects chlorine, sulfur dioxide, benzene, ammonia, etc. The robot is also equipped with a voiceprint acquisition function, which supports infrared fill-in light. In addition, the robot also has a sound acquisition system, which can determine whether the working status of the equipment is normal through sound decibel detection.
- Height-adjustable camera function and personnel identification: the robot's lens supports lifting and lowering, fully raised height plus body height of up to 310cm. it is also equipped with infrared camera (pixel ≥ 4 million), support for temperature measurement, area mapping/alarms and other functions, and can be superimposed on the image to show the temperature characteristics of the information. In addition, the robot is equipped with an external intruder recognition function with an accuracy rate of over 90%.
